Amp Update

Today i went to my father's office to build the chasis for my amp. Since a picture speaks a thousand words, i shall just use pictures (:
My present, wraped in newspaper. Hmm, whats inside the wrapping paper. Aluminium sheets! Precut somemore... (okay that sounds lame)

Mock up of the whole thing. Shall eventually spray it black.

Then we began drilling 15mm deep holes using the bench press.Look at that! So long!

For the tapping part, we used a portable drill, set it to low speed and tap.

Thats about all for today. Only managed to do the tapping for the top and bottom of the heatsinks, the front and back have to wait till later. It sure is hell lot of work!

MRC handover day

Today was MRC handover day. The new comittee members are as follow:

President: Kang De
Vice President: Zhen Ning (yar thats me)
Secretary: Zhong Xian
Treasurer: Shermaine
Quarter Comittee: Colin, Xiang Jun, Joe, Kee Ann

So there it is. I felt rather sad that the seniors are leaving us. All seems just so fast. Well, have to accept it ba.

Together, this new comm shall lead MRC to great success!

Council Investiture 2007

Great work they got there. Very very grand in my honest opinion. I was up there in the cage on the mixer. Stress level not as high as before, like chinese new year which i totally screwed up. But anyway, the whole investiture was quite well done except for the start where the cue was given to play the music and i played but then the council people didn't walk out. A few seconds later, we had a council rush into the cage telling us the people haven even reach the door!! Okay okay, i faded out the music and then Miss Annie came out and repeated "I present to you, the student councillors. Again." It was really quite funny but then all went on quite smooth after that.

I was rather touched by maggie's speach. Not just because of she thanking us MRC but it was an overall thing. The way she phrased everything and stuff, was just meant to touch peeple. The first CCA she thanked was MRC, and indeed it touched me to know that someone out there actually still knows that we are always around, suporting various events "secretly".

Through this investiture, i learned that council is quite a fun thing. I stayed on for their recession and really saw the other side of council. They were actually giving out presents to teachers and councils. The councils first gave the 5 teacher in charge presents and they were very very creative presents in my opinion. There was one for this teacher called: eeker tanial?! Don't really know how to spell it but its pronounced it this way. So the first present was this card showing a new kind of evolution from ET to 一个大牛 to Tuna. I couldn't really get the tuna part but it was just funny la. So after that card, the council people gave him a back massager with a cow head soft toy on its tip. Then came the fun part. He was given 2 custom shirt. The first one was a white shirt with the words, 一个大(a cow head). The next T-shirt was one with the words tuna. But it was designed to look like the Puma style. So instead of the words Puma, it was replaced with the words TUNA and instead of a leopard, it was replaced with a flying tuna -_-. Quite lame but it was hilarious!

Ahh its just so sad that half a year has gone and various CCA leaders are stepping down already. What have i done this half year? I don't really know. Its like i just closed my eyes and half a year is gone.

Oh ya. From council investiture, i learned one thing too! Old teacher does not necessarily mean naggy. Trust me on that. I learned that FIRST HAND. Haha!

Amp Update

Righto. Reached home at like 8+, then took a shower and started working on my amp before dinner came. What i had to do was to remove the parallel resistor so that i would have a effective resistance of 1.2Ohms along the output stage in order to decrease my bias current
Instead of 2 resistors, now there is only one. so its 1.2ohms

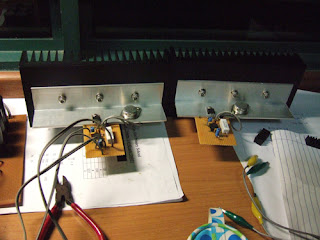

Each channel has its own heatsink.
